Mermaid to PDF API

The whole thing

Get a token, post the diagram, take the PDF. The document it makes stays in the account, so the same id can be fetched as a picture later or handed to a person as a link they can edit.

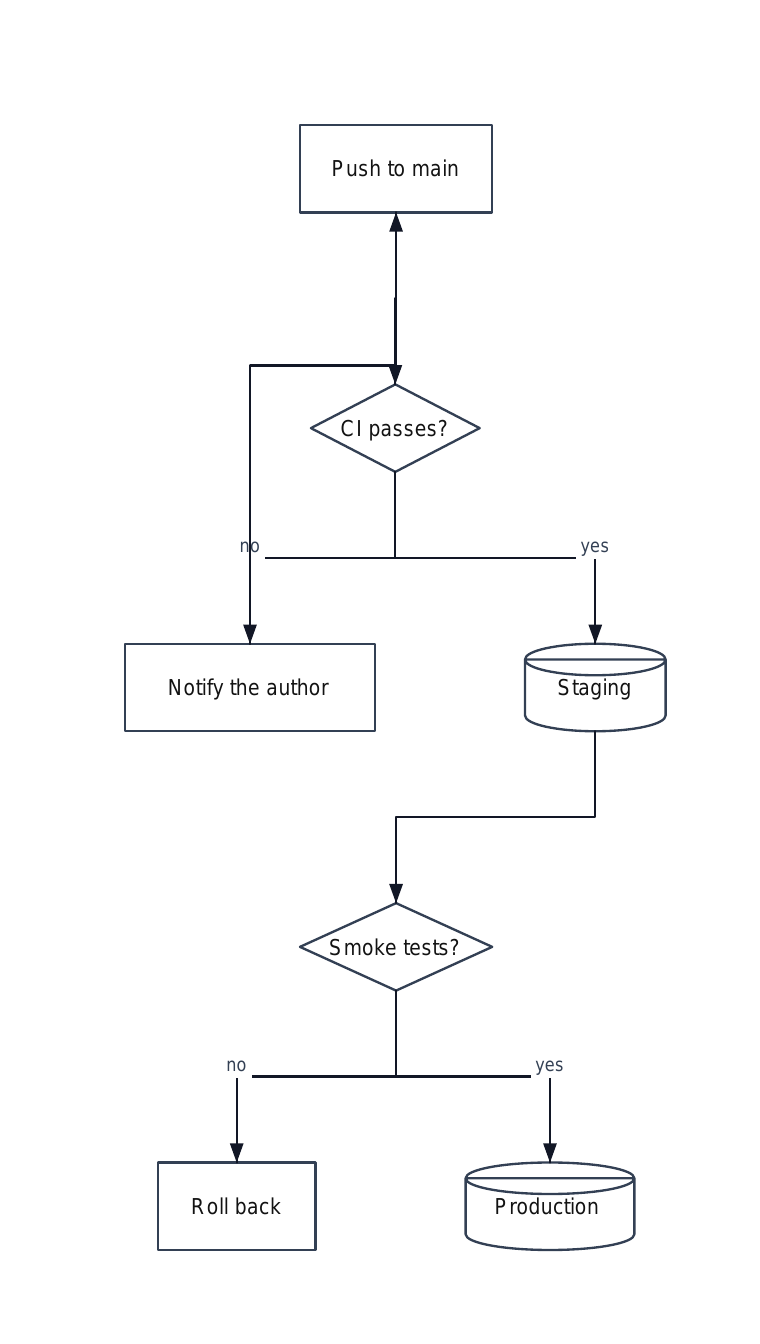

# the mermaid above, as a document
ID=$(curl -s https://docubend.com/api/v1/diagrams \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "title": "Release pipeline",
    "mermaid": "flowchart TD\n  Dev[Push to main] --> CI{CI passes?}\n  CI -->|no| Fix[Notify the author]\n  CI -->|yes| Stage[(Staging)]\n  Stage --> Smoke{Smoke tests?}\n  Smoke -->|no| Roll[Roll back]\n  Smoke -->|yes| Prod[(Production)]\n  Fix --> Dev"
  }' | jq -r .document.id)

# as a PDF, and as a picture
curl -s "https://docubend.com/api/v1/documents/$ID.pdf" \
  -H "Authorization: Bearer $TOKEN" -o pipeline.pdf
curl -s "https://docubend.com/api/v1/documents/$ID.png?dpi=150" \
  -H "Authorization: Bearer $TOKEN" -o pipeline.png

const BASE = "https://docubend.com";
const head = { Authorization: `Bearer ${TOKEN}` };

const mermaid = `flowchart TD
  Dev[Push to main] --> CI{CI passes?}
  CI -->|no| Fix[Notify the author]
  CI -->|yes| Stage[(Staging)]
  Stage --> Smoke{Smoke tests?}
  Smoke -->|no| Roll[Roll back]
  Smoke -->|yes| Prod[(Production)]
  Fix --> Dev`;

const r = await fetch(`${BASE}/api/v1/diagrams`, {
  method: "POST",
  headers: { ...head, "Content-Type": "application/json" },
  body: JSON.stringify({ title: "Release pipeline", mermaid }),
});
const { document: doc } = await r.json();
console.log("editable at", doc.links.open);

import requests

BASE, head = "https://docubend.com", {"Authorization": f"Bearer {TOKEN}"}

mermaid = """flowchart TD
  Dev[Push to main] --> CI{CI passes?}
  CI -->|no| Fix[Notify the author]
  CI -->|yes| Stage[(Staging)]
  Stage --> Smoke{Smoke tests?}
  Smoke -->|no| Roll[Roll back]
  Smoke -->|yes| Prod[(Production)]
  Fix --> Dev"""

doc = requests.post(f"{BASE}/api/v1/diagrams", headers=head, json={
    "title": "Release pipeline", "mermaid": mermaid,
}).json()["document"]

open("pipeline.pdf", "wb").write(requests.get(doc["links"]["pdf"], headers=head).content)
print("editable at", doc["links"]["open"])

What you get that a renderer does not give you

Services like mermaid.ink and Kroki turn mermaid into a picture, keep nothing, and cost nothing. If a picture is all you need, use one of those — this page is not trying to talk you out of it.

This is for when the diagram has to be a document. What comes back opens in a real editor, so somebody can move a box, add a shape from a library of over 400 stencils, annotate it or comment on it. It is searchable, shareable, and it keeps a version history. And the id stays the same when your pipeline regenerates it, so the link you gave people last month still shows this month's diagram.

Flowcharts, and nothing pretending to be one

flowchart and its older name graph, in all four directions. Node shapes — rectangles, rounded, stadium, circle, diamond, hexagon, cylinder, trapezoid, parallelogram, flag — every arrow form including dotted and thick and bidirectional, labels in both the |text| and -- text --> spellings, chains, and subgraphs, which are laid out as units so a group stays together.

Mermaid's other diagram types are refused by name with a 422 and a sentence explaining why: a sequence diagram, a class diagram or a gantt chart is not boxes joined by arrows, and turning one into loose rectangles would produce something that looks like a diagram and means nothing. A refusal you can read beats a picture you cannot use.

The layout is ours, because mermaid has none

Mermaid carries no coordinates — it names a direction and leaves the arrangement to whatever draws it. So the import lays it out: nodes are ranked by longest path, so something reached both directly and the long way round sits after the long way and no arrow travels backwards through the picture. Cycles are placed just past whatever points at them. Subgraphs are ranked against each other by the arrows that run between them, and their members only against each other, so a group is a block on the page rather than a box drawn around half the diagram.

The page then grows to fit what arrived, which matters more than it sounds: a hundred-node network chart lays out several thousand pixels across, and a fixed page would put almost all of it off the edge.

And back out again

Any diagram here can be read back as mermaid — GET /api/v1/documents/<id>.mmd — including one somebody drew by hand in the editor. What has no spelling in mermaid, such as a pen stroke, an image or a connector with a loose end, is counted in the response headers rather than quietly dropped. Diagrams also come in from .drawio, Visio and SVG, and go back out as .drawio.

The rest of it

The full API reference — every call, its parameters and what it answers, in cURL, Python and JavaScript. Or turn Markdown into a PDF the same way, and draw a diagram on top of a PDF by hand.
